Lasers for the
Tire Industry

Tire Retreading

Positioning lasers are used in tire retreading to ensure precise testing and alignment of the tread. This ensures that the new tread can be applied optimally and that quality is maintained.

Possible Product Areas

Positioning Lasers

Tire Tread Measurement

Laser-based profile measurement enables precise recording of tire profiles. This allows wear, dimensional accuracy, and quality to be reliably checked during the manufacturing process.

Possible Product Areas

Machine Vision Lasers

Code Reading & Character Recognition

Laser-based image processing reads and checks tire markings such as the DOT code. This ensures reliable traceability and quality assurance in tire manufacturing.

Possible Product Areas

Machine Vision Lasers

Tire Geometry Inspection

During tire production, potential height deviations, bulges, and other irregularities are checked. Z-LASER solutions serve as a precise light source in conjunction with cameras and image processing. Thanks to the exact straightness of the laser lines and a uniformly bright projection, deviations can be reliably detected. This enables efficient inspection, strengthens quality assurance, and increases productivity throughout the entire tire manufacturing process.

Possible Product Areas

Machine Vision Lasers

Tire Press

In this application, the precise positioning of the tire blanks in the tire presses plays a crucial role. To ensure this, Z-LASER lasers project a clearly visible cross mark. When using the tire press, it is also essential that the lasers used are highly robust. In addition, the laser light should be clearly visible and safe for the eyes.

Possible Product Areas

Positioning Lasers

Splice Inspection & Measurement

Inspecting tire splices is crucial for detecting defects such as open areas, overlaps, or irregularities at an early stage and ensuring the safety and longevity of the tires. The laser plays a central role in this process, working in conjunction with a camera and image processing. Its precisely straight lines, which are visible on dark rubber regardless of contrast, reveal even the smallest anomalies that would be invisible to the naked eye. This increases the accuracy of the inspection and ensures consistently high tire quality.

Possible Product Areas

Machine Vision Lasers

Tire Building Machine

Several laser lines are used to precisely align the rubber layers on the drum. Green laser light with 520 nm or 532 nm is particularly advantageous here, as it is optimally visible on black rubber. The precise positioning of the lines is ensured by special brackets from Z-LASER. In addition, the laser modules impress with their stable line position even when refocusing, various optics with adjustable opening angles, and their eye safety, which ensures a high standard of occupational safety.

Possible Product Areas

Positioning Lasers

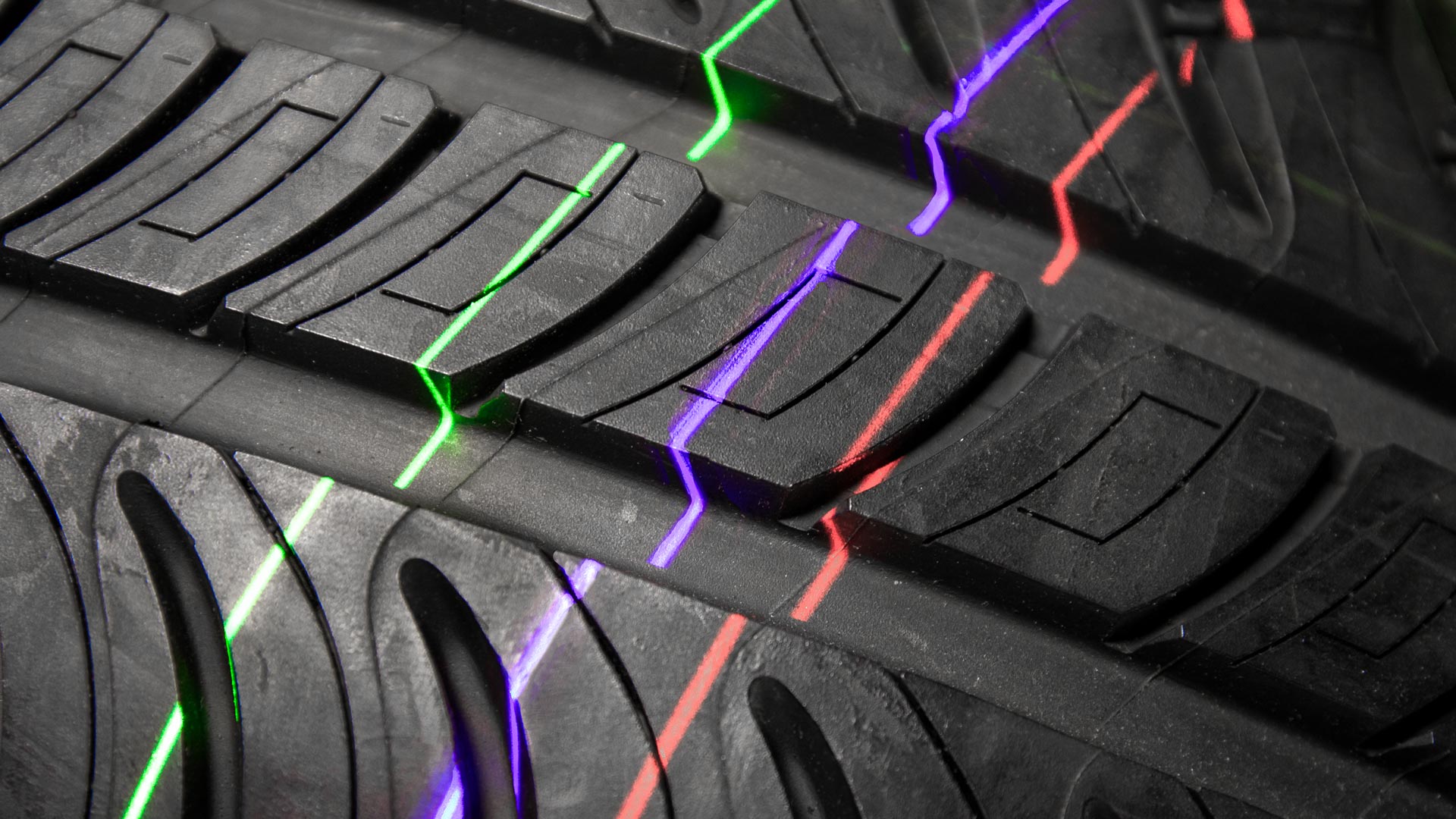

Measurement of Track Width, Edge & Geometry

The width and edges of the rubber tracks are precisely monitored using laser light, ensuring that subsequent process steps run efficiently and that changeover times are minimized through early error correction. What matters is not only uniform projection, but also line straightness and thermal stability. The robust laser modules are specifically designed for these requirements, guaranteeing high precision and process reliability.

Possible Product Areas

Machine Vision Lasers
