Modern tire manufacturing is highly complex, with quality, process reliability, and repeatability among the key requirements. To achieve consistently high production accuracy, manufacturers rely on machine vision systems. These are used at various stages of the quality control process, from raw material inspection and early defect detection to the final inspection of the finished tire. For these measurement and inspection processes to deliver reliable results, machine vision systems require a stable, uniform laser line as an optical reference. At the same time, tire production involves harsh operating conditions in which the equipment must perform reliably. Z-LASER provides robust laser that enable precise tire inspection even under these requirements.
The Challenge: Harsh Environmental Conditions in Production
In tire manufacturing, industrial environmental conditions are inherently harsh due to the process itself. They place stress on optical and electronic components and can therefore affect the stability of measurement and inspection systems. Typical process-related loads on lasers in production halls include:
- Vibration and shock: Shock loads can influence optical alignment and destabilize or shift the projection. Specialist sources cite, for example, shock loads of up to 40 g for 10 ms.
- Temperature fluctuations: These can change beam parameters, output power, and the wavelength of laser diodes, reducing measurement accuracy in industrial image processing. Depending on the environment, temperatures of roughly 0 to 50°C are relevant.
- Electromagnetic interference (EMI/EMC): This can adversely affect the laser’s control and signal electronics, leading to signal disturbances, instability, or downtime.
- Dust and moisture: These can contaminate optical surfaces or promote condensation, causing the laser line to become weaker or uneven.
The Solution: Robust Z-LASER Laser Modules for Tire Inspection
For quality control in tire production to remain reliable under demanding production conditions, lasers for tires must be engineered specifically to meet these requirements. Z-LASER lasers are designed to be highly robust. As a result, they operate consistently and reliably even under the challenging environmental conditions of tire production. They offer the following quality features:
- Mechanical stability: A robust housing and shock-resistant potting of optics and electronics ensure that vibration and shock do not compromise precision.
- High IP protection: A suitable housing concept protects against dust and moisture, supporting consistent performance and long service life.
- Thermal stability: Intelligent thermal management maintains a stable operating temperature for the laser diode, which is crucial for consistently high laser-line accuracy.
- EMC protection: Shielding and EMC-compliant design reduce susceptibility to electromagnetic interference.
These features enable camera systems used in industrial image processing to capture a clear, stable laser line. This is a key prerequisite for precise measurement and reliable tire inspection.
Conclusion: Quality Assurance with Resilient Lasers
The specific requirements of tire inspection clearly show that consistently reliable quality assurance can only be achieved when the technology used can withstand harsh environmental conditions. In tire production, vibration and shock, temperature and humidity fluctuations, and electromagnetic disturbances have a direct impact on the stability of optical systems. Conventional lasers quickly reach their limits because projection quality and signal stability lose consistency under these loads.
Z-LASER lasers are engineered for the specific requirements of tire manufacturing. With mechanically stable construction, effective protection concepts against dust and moisture, thermally stable design, and an EMC-compliant architecture, they deliver a consistently precise and stable laser line that industrial image processing systems can reliably capture and evaluate. This creates the basis for precise measurement and inspection results, helps reduce scrap, and supports reliable quality assurance throughout the whole process.
If you are looking for a reliable laser solution for demanding environmental conditions, contact our experts. We will be happy to advise you on your specific application.
Frequently Asked Questions
Industrial image processing is essential for quality control. It enables automated, precise tire inspection at different production stages, helping identify defects early and supporting compliance with safety and quality requirements.

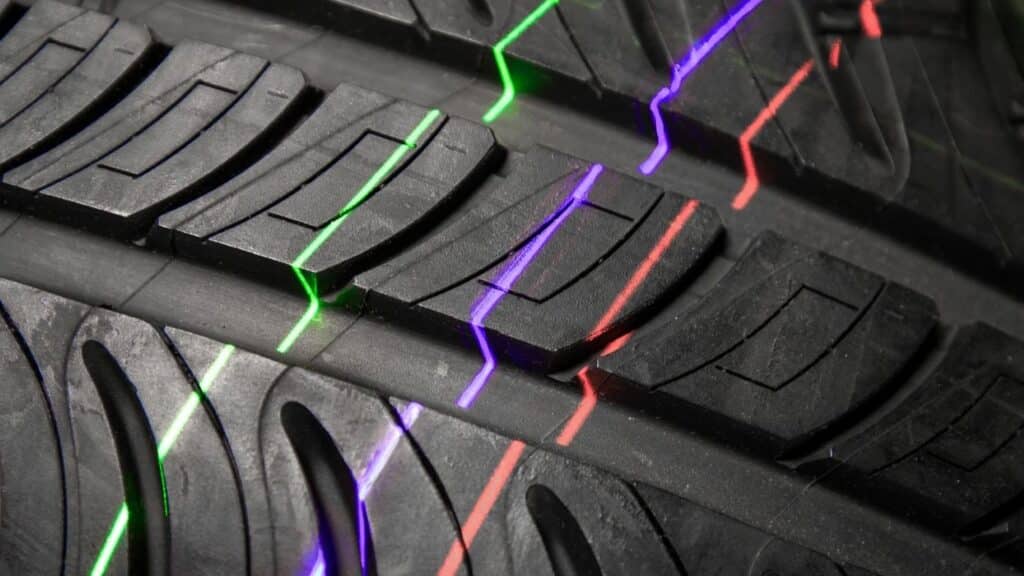

The laser generates a defined laser line as an optical reference on the tire surface. A camera captures the line’s profile. Deviations from the target line path are detected and classified as faults by the image processing software.
Strong vibration and shock, temperature and humidity fluctuations, and electromagnetic disturbances from machinery can significantly affect the precision, stability, and service life of conventional laser modules.
Z-LASER laser modules are designed for demanding industrial operating conditions. They are mechanically robust, offer high IP protection, and are engineered for thermal stability and EMC compliance to maintain consistently high performance even under harsh environmental conditions.
