Z-LASER laser projectors are used across a wide range of industries where they serve as optical guidance that replaces physical templates or measuring systems. These include the composites industry, the woodworking industry, or the automotive industry. To reduce wear- or damage-related downtime as effectively as possible, the projectors are modular in design. In addition, Z-LASER’s service includes remote support for rapid diagnostics and assistance.
Modular Design: Preventing Machine Downtime

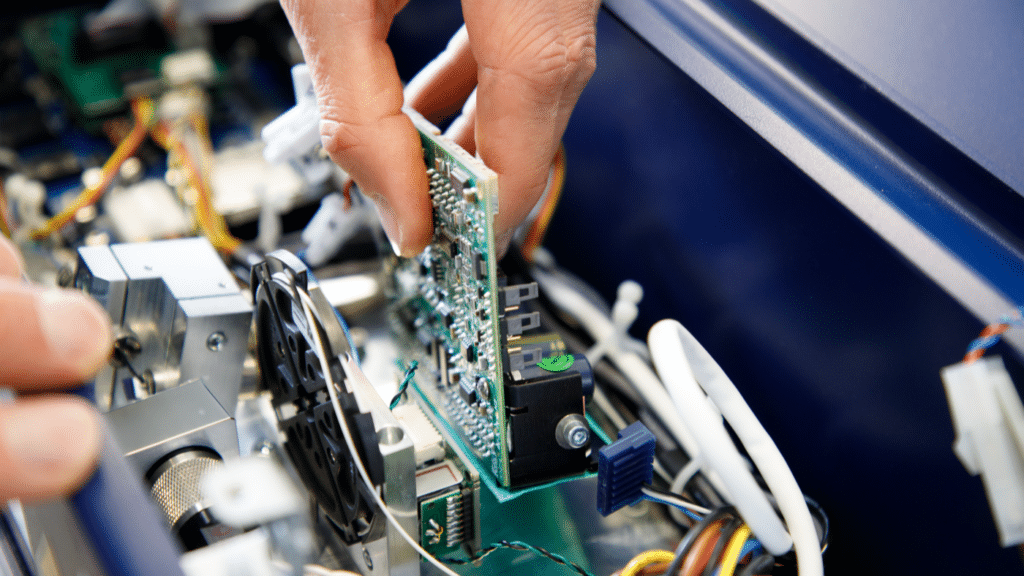

Thanks to their modular design, Z-LASER laser projectors can be easily serviced and repaired with minimal effort. For example, key components of the ZLP2-HighPower can be replaced in less than one hour. This helps keep the production line productive and prevents unexpected costs caused by machine downtime. In addition, Z-LASER provides loan equipment if a more extensive repair is required, ensuring that production can continue.
Advantages of the Modular Design at a Glance
- Quick replacement of parts: Spare parts and individual components can be replaced directly on site.
- Reduced downtime: Production continues.
- Lower costs: By minimizing downtime and outages, additional expenses can be avoided.
- Loan equipment service: For more extensive repairs, Z-LASER provides a loan unit.
Quick Support via Remote Access
When problem occur, rapid diagnosis and solutions are often required. Z-LASER provides technical support both on site and remotely. Via remote access, Z-LASER service personnel can identify and resolve many issues through remote diagnostics.
Advantages of Remote Support at a Glance
- Fast diagnosis and solution: Many issues can be resolved through remote access.
- No waiting for technicians on-site: There are no waiting times for service personnel to travel to the site.
- Minimized downtime: Production can resume significantly faster.
Replacing the Laser Source On Site: Reducing Downtime
A defective laser source does not necessarily have to result in production downtime. The laser source can be replaced directly on site, even by the customer. Z-LASER also provides repair kits for this purpose.
Advantages of Laser Source Maintenance at a Glance
- Simple, safe on-site replacement: Customers can replace the laser source themselves on site.
- Repair kits: Z-LASER provides repair kits so that customers can replace the laser source quickly.
- Reduced downtime and maintenance costs: The cost of maintenance and repair is significantly reduced.
Z-LASER Laser Projectors: Visual Guidance for Greater Precision and Efficiency
Z-LASER’s industrial laser projectors serve as precise optical guidance systems for 2D and 3D applications. Using CAD data, they project lines, contours, or markings to scale directly onto workpieces or work surfaces, indicating exactly where materials must be placed or tools applied. This eliminates the need for error-prone mechanical templates and makes work steps such as welding, assembly, and workpiece inspection more efficient and reliable. The product portfolio includes laser solutions for a wide range of requirements.
The ZLP1 is a compact projector for smaller work areas and short projection distances (1 to 3 m). It is suitable, for example, for operator guidance or order picking. The ZLP2, featuring a fiber-coupled Z-FIBER laser source, is designed for medium projection distances (< 0.5 m to 7 m) and is used, for example, in woodworking and stone processing. The ZLP2-HighPower features a high-power laser source for long projection distances (up to 20 m). It is designed for particularly demanding conditions and is used, for example, in wind turbine blade manufacturing and the aerospace industry.
ZLP1 – Laser Projector
The ZLP1 is a compact and cost-effective laser projector designed for industrial applications. It is particularly suited for small working areas and short distances, making it ideal for picking, logistics, and worker guidance tasks. By projecting optical work instructions directly onto the workspace, the ZLP1 supports employees in real time, increasing both efficiency and process reliability. The projector is eye-safe in laser class 2M and can be controlled via the intuitive ZLP-Suite software or integrated into existing applications through an API. Additional software modules allow flexible function extensions, ensuring the ZLP1 can be adapted precisely to individual requirements.
Learn More
ZLP2 – Laser Projector
The ZLP2 is a powerful laser projector equipped with a fiber-coupled Z-FIBER laser source to deliver outstanding beam quality. With an accuracy of 0.25 mm per meter of working distance, it is ideal for precise projections in traditional applications such as woodworking and stone processing, as well as demanding composite material tasks. Operation is simple via the intuitive ZLP-Suite software with graphical user interface or through the integrated programming interface (API). In addition, native control via TCP/IP-enabled PLC systems is supported, allowing seamless integration into automated workflows. The ZLP2 thus provides a flexible, expandable, and reliable solution for industrial applications where precision and efficiency are critical.
Learn More
ZLP2 – HighPower
The ZLP2 HighPower sets a new standard for laser projection in the most demanding environments. With an enhanced laser source, upgraded mechanics, and optimized electronics, it delivers superior brightness, precision, and durability—even in challenging light conditions or across large projection distances. Achieving an accuracy better than ±0.1 mm/m, it supports working areas up to 10 × 10 m and projection distances of up to 20 m. Typical applications include concrete construction, aerospace, and wind turbine blade manufacturing, where it can improve process efficiency by up to 30%. Its modular design allows key components to be replaced in the field in under an hour, minimizing downtime, while standardized interfaces and an intuitive API ensure seamless integration into existing systems.
Learn MoreLaser Projector Maintenance: Reduced Downtime and Greater Efficiency with Z-LASER
Z-LASER’s maintenance and service concept keeps your laser projection system operational for years. The projectors’ modular design enables key components to be replaced on site. Combined with remote support and the provision of repair kits and loan equip ment, this helps minimize downtime and avoid high repair costs.
Would you like to learn more about Z-LASER’s maintenance and service offerings? Contact us. We would be happy to provide a no-obligation consultation and work with you to identify the right service concept for your laser projectors.
Frequently Asked Questions
The modular design of Z-LASER laser projectors, combined with service offerings such as remote maintenance via remote access and the provision of repair kits, helpst prevent downtime.
Individual components can be replaced on site, keeping production going and avoiding unexpected costs caused by machine downtime. For example, key components of the ZLP2-HighPower can be replaced in less than one hour.
Yes. Z-LASER service personnel can identify and resolve many issues via remote access, without the need for a technician to be on site. If required, on-site support is also available.
The laser source in Z-LASER laser projectors can be replaced on site, either independently by the customer or by Z-LASER service personnel. In addition, Z-LASER provides repair kits for customers.
f a more extensive repair is required, Z-LASER provides a loan unit so that production can continue without interruption.
The portfolio includes the ZLP1 for short projection distances (1 to 3 m) , the ZLP2 for medium projection distances (<0.5 m to 7 m) , and the ZLP2-HighPower for long projection distances of up to 20 m.
